Creating cinematic, ultra-realistic environments in Unreal Engine 5.5 is an incredibly rewarding process, but maintaining a target framerate of 60 FPS requires a deep understanding of the engine's internal rendering systems. By utilizing advanced rendering technologies such as Lumen global illumination and Nanite virtualized geometry, we can push millions of polygons onto the screen—but only if we configure our parameters with precision.

In this deep-dive guide, we will examine the core bottlenecks of real-time cinematic scenes and outline a step-by-step optimization blueprint to maximize performance on modern hardware.

1. Architectural Foundation of Real-Time Rays: Lumen vs. Ray Tracing

Lumen is Unreal Engine's fully dynamic global illumination and reflections system. By default, Lumen uses Software Ray Tracing (SWRT) on distance fields, but it can be configured to use Hardware Ray Tracing (HWRT) for maximum physical accuracy.

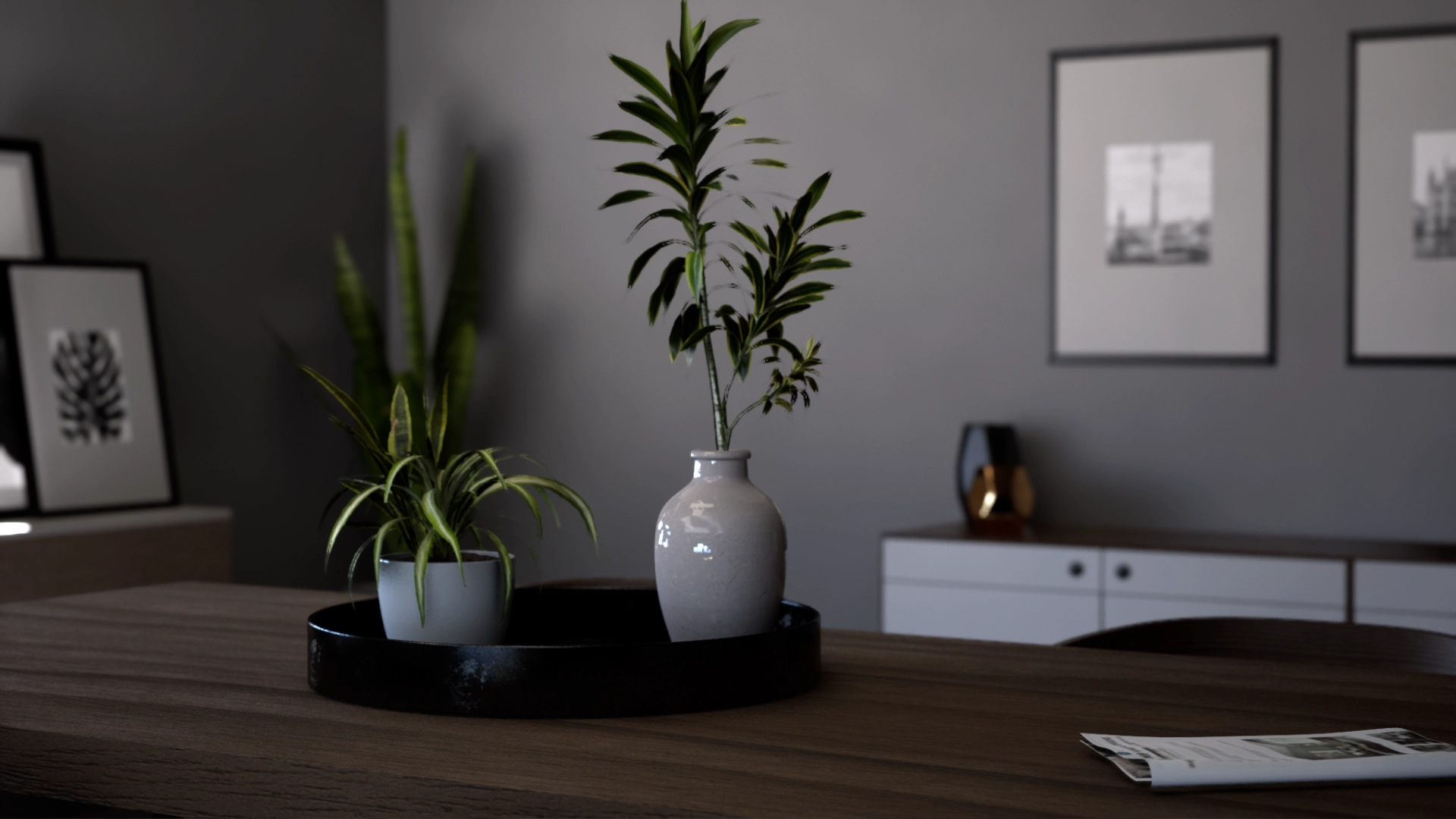

Indirect light bouncing through an interior with Lumen

To optimize Lumen's global illumination performance:

  • Set the Lumen Scene Lighting Update Speed between 0.5 and 1.0. Lower values reduce CPU overhead during dynamic lighting changes.
  • Limit the Max Reflection Bounces to 1 or 2 for real-time play, as higher values have diminishing visual returns in high-velocity scenes.
  • Use Software Ray Tracing for background landscapes and save Hardware Ray Tracing for hero assets closer to the camera.

2. Managing the Nanite Overdraw and Rasterization Bottlenecks

Nanite has completely transformed asset creation by allowing artists to import movie-quality source meshes with millions of polygons directly. However, Nanite is not entirely free; it is heavily bound by rasterization performance and overdraw.

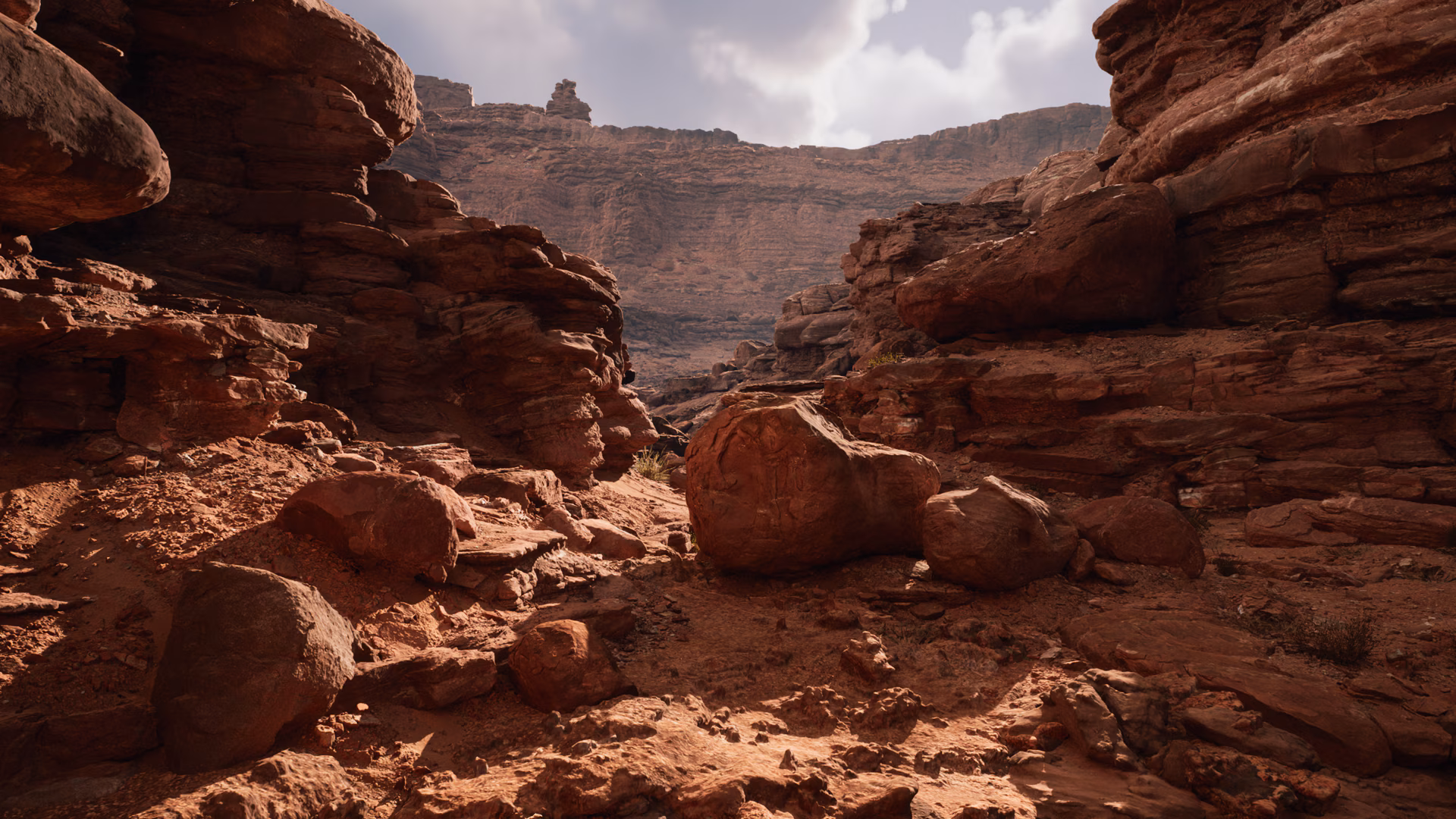

Nanite virtualised geometry holding film-grade detail in real time

To prevent Nanite rasterization bottlenecks:

  • Avoid highly dense, overlapping foliage meshes. Overdraw occurs when many transparent or small Nanite triangles overlap, forcing the GPU to compute pixel values multiple times.
  • Enable Nanite Preserve Area on extremely thin geometries to maintain proper rasterization bounds.
  • Use the Nanite Overdraw View Mode to identify areas of your level colored in bright red or white, indicating critical performance bottlenecks.

3. Optimizing Virtual Shadow Maps (VSM) for High-Frequency Details

Virtual Shadow Maps (VSM) deliver high-resolution, physical shadows that match Nanite's pixel-perfect geometry, but they can easily saturate your GPU's compute budget if not configured correctly.

Abstract Lighting

To balance VSM performance:

  • Deactivate shadow casting on small, non-essential dynamic debris, grass blades, or tiny pebble assets.
  • Set the Shadow Map Resolution Multiplier to 0.5 or 0.75 for non-hero lights to free up massive chunks of video memory.
  • Utilize shadow cache invalidation settings to prevent static lights from recalculating shadow maps every frame.

4. Advanced Texture Streaming Pools and VRAM Budgeting

High-resolution textures are the primary cause of out-of-memory (OOM) crashes and stuttering frame rates. Unreal Engine's texture streaming pool must be actively managed to prevent texture popping.

VRAM and Graphics Hardware

To optimize your texture footprint:

  • Establish a strict VRAM Budget based on your target platform (e.g., 8GB for general gaming PCs, 16GB+ for high-end studio workstations).
  • Increase the Streaming Pool size using the command r.Streaming.PoolSize 4000 to allocate more memory on graphics cards with 8GB+ of VRAM.
  • Pack texture maps (e.g., combining Roughness, Metallic, and Ambient Occlusion into individual Red, Green, and Blue channels of a single texture) to reduce texture samplers by 66%.

5. Managing Scalability Settings via Console Variables (CVars)

Console Variables (CVars) provide precise control over Unreal Engine's rendering pipeline. By creating customized scalability profiles, you can scale your environment's performance dynamically.

Essential CVars for environment optimization:

  • r.Lumen.Diffuse.Temporal.Filter 1 - Enables temporal filtering to smooth out lighting noise.
  • r.Nanite.MaxPixelsPerEdge 4 - Controls Nanite's level-of-detail transition threshold.
  • r.Shadow.Virtual.MaxPhysicalPages 2048 - Prevents VSM memory crashes in highly complex forest scenes.

6. Utilizing the Unreal Insights Tool to Diagnose Frame Drops

Never guess why your project is dropping frames. Unreal Insights is a powerful, built-in telemetry tool that captures detailed timing logs from your CPU and GPU.

By analyzing the traces in Unreal Insights, you can see exactly which systems (such as game thread logic, physics updates, or render-thread execution) are causing frame hitches, allowing you to optimize target systems with scientific precision.

7. Distributing Cinematic Exporters with Sky Render Farm Remote Nodes

For high-end cinematic sequences, rendering out final offline EXR or MP4 frames using the Movie Render Queue can lock up your local workstation for days, especially when using high spatial and temporal anti-aliasing samples.

By offloading your Movie Render Queue configurations to Sky Render Farm's powerful cloud infrastructure, you can distribute individual frames across multiple high-performance NVIDIA RTX 5090 and RTX 4090 servers. This speeds up your export process by up to 20x, allowing you to deliver finished cinematic masterpieces in minutes.
